25mm Self-Adhesive RFID Label: How to Choose and Apply It Correctly
A self-adhesive RFID label allows you to equip an object without adding a separate badge. Its small format makes application straightforward, but the surface, location and reader all influence the result. A test on the actual object is therefore an essential step before equipping an entire batch.

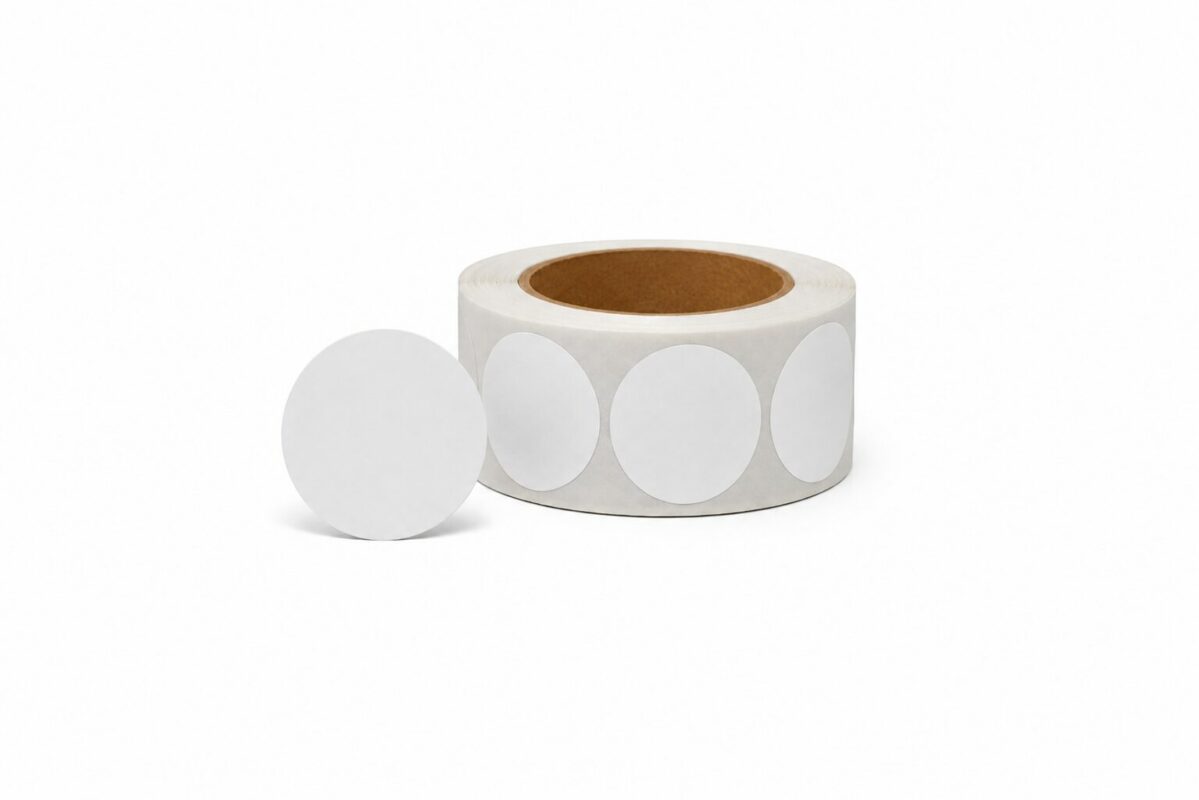

Our 25mm round RFID label is available in MIFARE 1K and MIFARE 4K variants. This guide explains how to prepare its use without confusing physical format with electronic compatibility.
Validate the technology and expected data
The diameter indicates the label’s footprint, not which readers can use it. Start by checking the reader reference and the chip technology expected by the software. The two variants on the product page do not automatically replace each other in an already configured application.
Then determine what your system reads: the credential identifier, data stored in its memory, or a specific application structure. The presence of memory does not mean the label is already prepared for your installation, nor that its identifier can be changed freely.
Do not assume that a phone will be able to read your application either. Compatibility depends on the phone, the chip, the data format and the software used. For use with smartphones, have this workflow validated separately before ordering.
Choose a suitable surface and location
Identify a clean, dry and sufficiently flat area to receive the label without creasing or tension. Check adhesion on the actual material: a test on a table is not sufficient to draw conclusions for a textured casing or an object used in different conditions.
Proximity to metal can interfere with reading. A standard label should not be considered a special on-metal reference. If your object is metallic, have the appropriate solution and its application configuration confirmed. Do not compensate for unstable reading by promising a range the product has not demonstrated.
Avoid areas subject to friction, folding or exposure to cleaning products without prior validation. The small size of the label does not give it universal resistance to water, heat or chemicals.
Run a reproducible test before the full batch
Apply one label to a representative object and test it with the reader that will actually be used. Check several orientations and normal presentation positions. If several objects will be grouped together, reproduce this situation: a successful read with a single isolated object is not sufficient to validate the entire setup.
Note the chosen location, the chip variant and how the object should be presented. This information will help teams apply labels consistently and identify the cause of a read failure.
- Confirm the chip and the content expected by the system.
- Test adhesion and reading on the final material.
- Validate any metal or environmental constraints separately.
- Keep an application reference for subsequent batches.
Test successful? Select the right variant on the 25mm RFID label product page. To review the electronic criteria, our compatibility guide completes this preparation.
